LAGOM GDS Dual-Geometry Coffee Grinder (Pre-Order)

Full price	฿178,000
Deposit today to reserve your grinder	฿35,000
Balance due before delivery	฿143,000

The price shown at checkout is the ฿35,000 reservation deposit. ราคาที่ชำระตอนสั่งซื้อคือมัดจำ ฿35,000 เพื่อจองเครื่อง (ราคาเต็ม ฿178,000) ส่วนที่เหลือ ฿143,000 ชำระก่อนจัดส่ง

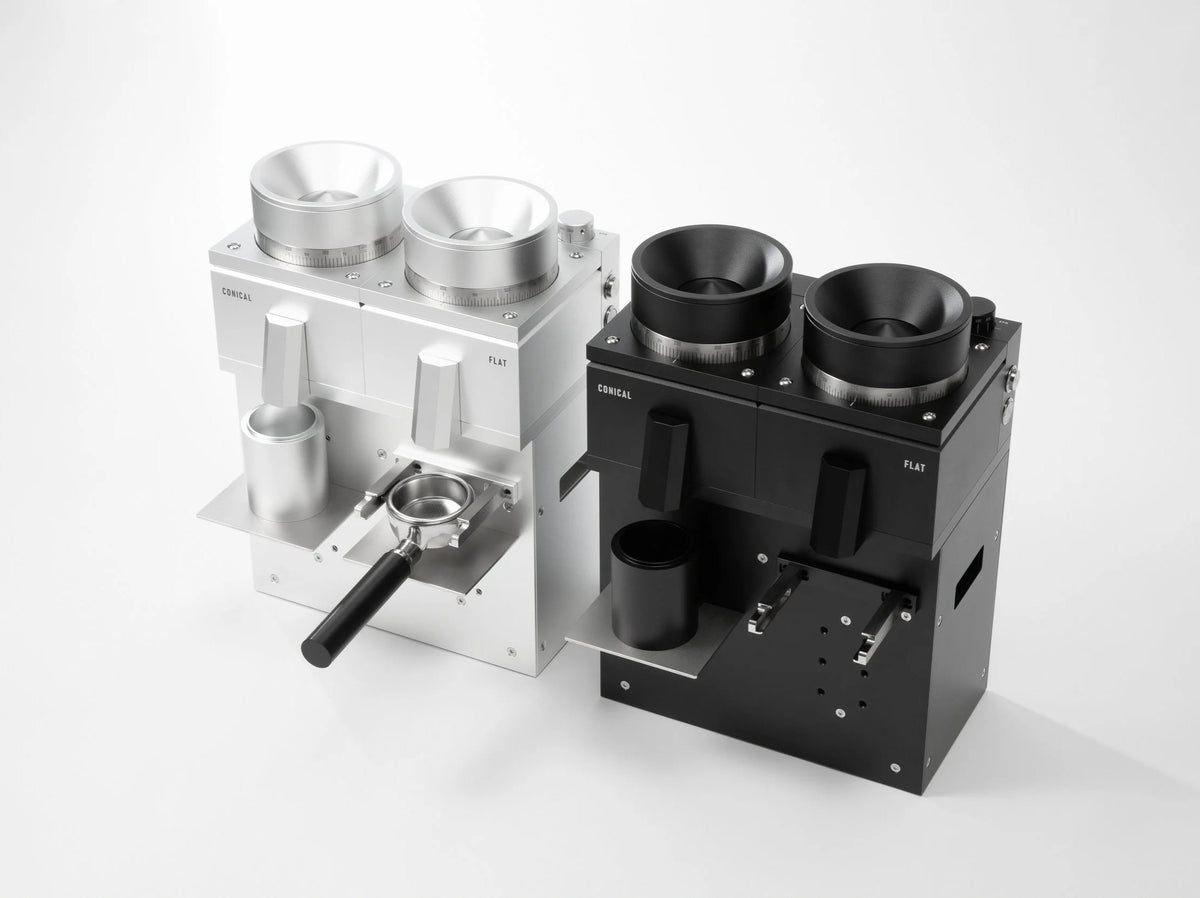

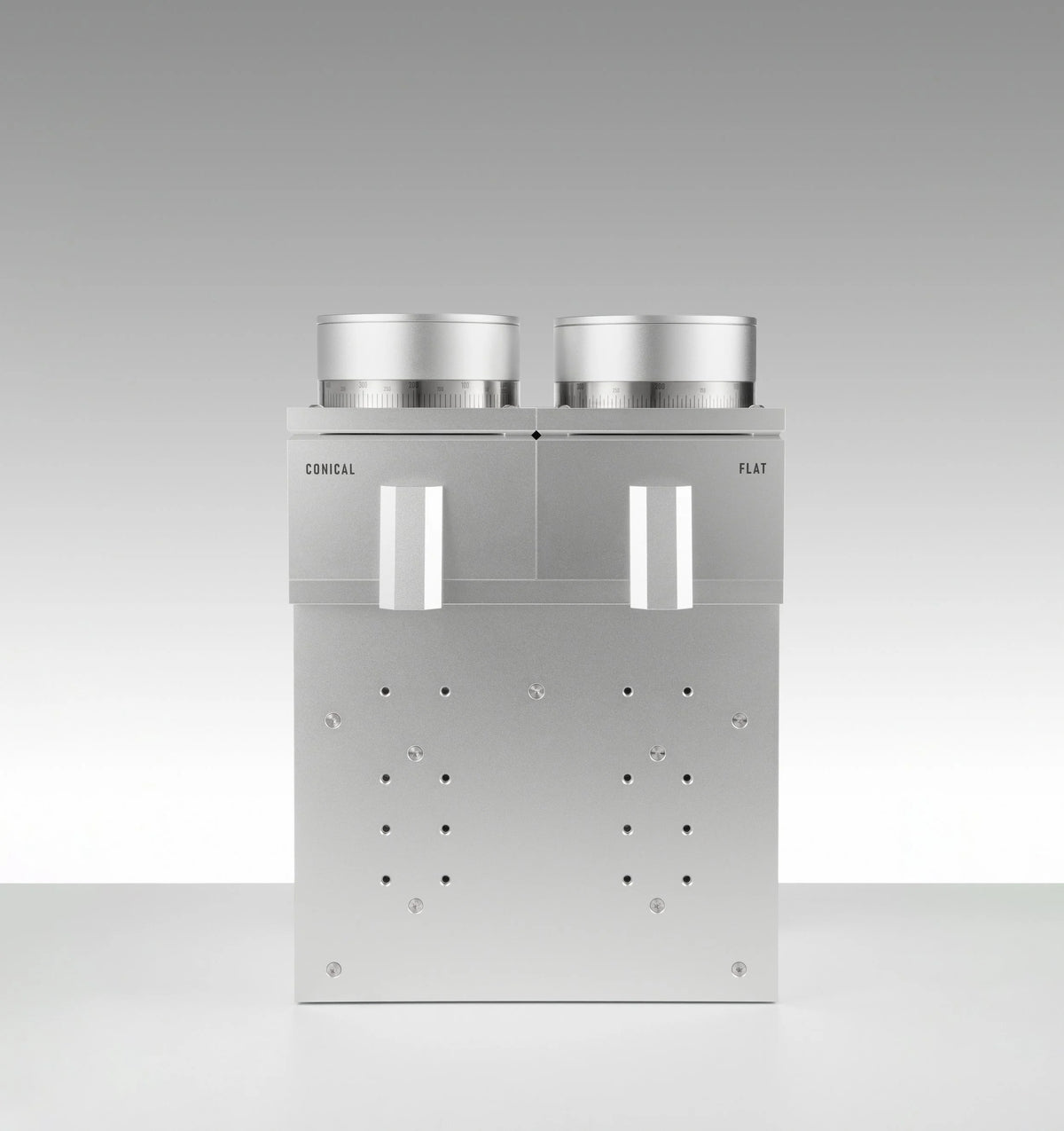

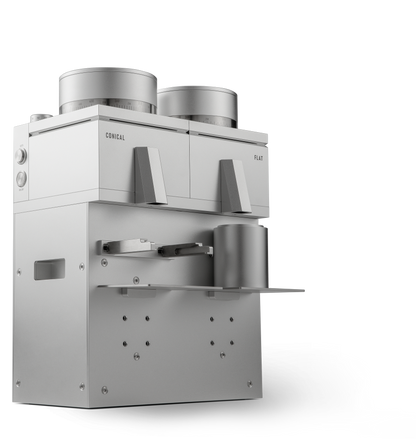

LAGOM GDS — Dual-Geometry Grinding System

Flat. Conical. Unified. Same coffee, different expressions.

GDS — Grinding Dynamics Study — is OPTION-O's dual-geometry grinder: flat and conical burrs in a single chassis, so you can explore clarity or mouthfeel, filter or espresso, side by side without changing machines. Designed like a lab instrument and inspired by high-end audio amplifiers, its controls and fasteners are exposed, intentional and analog.

รีวิว LAGOM GDS ภาษาไทย โดย Ben Coffee Story

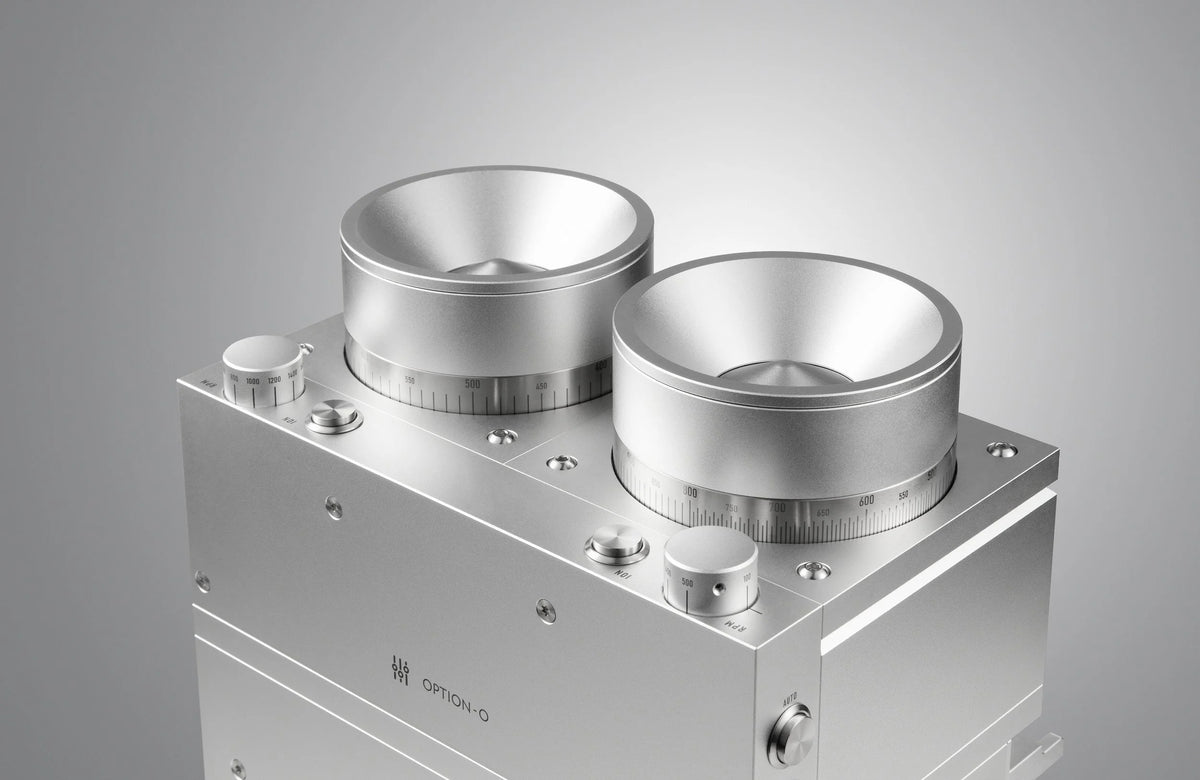

Three burr configurations

• Conical + Flat Mizen (100TX + 102OM) — the all-rounder. Rich, syrupy, traditional profiles on the left; OPTION-O's in-house Mizen flat pushes modern light roasts to their extraction potential on the right.
• Conical + Flat SSP HU (100TX + 102HU) — the same conical paired with an SSP High Uniformity flat for maximum clarity and separation.
• Flat Mizen + Flat SSP HU (102OM + 102HU) — two flat-burr expressions, Mizen and SSP High Uniformity, in one machine for direct comparison.

Highlights

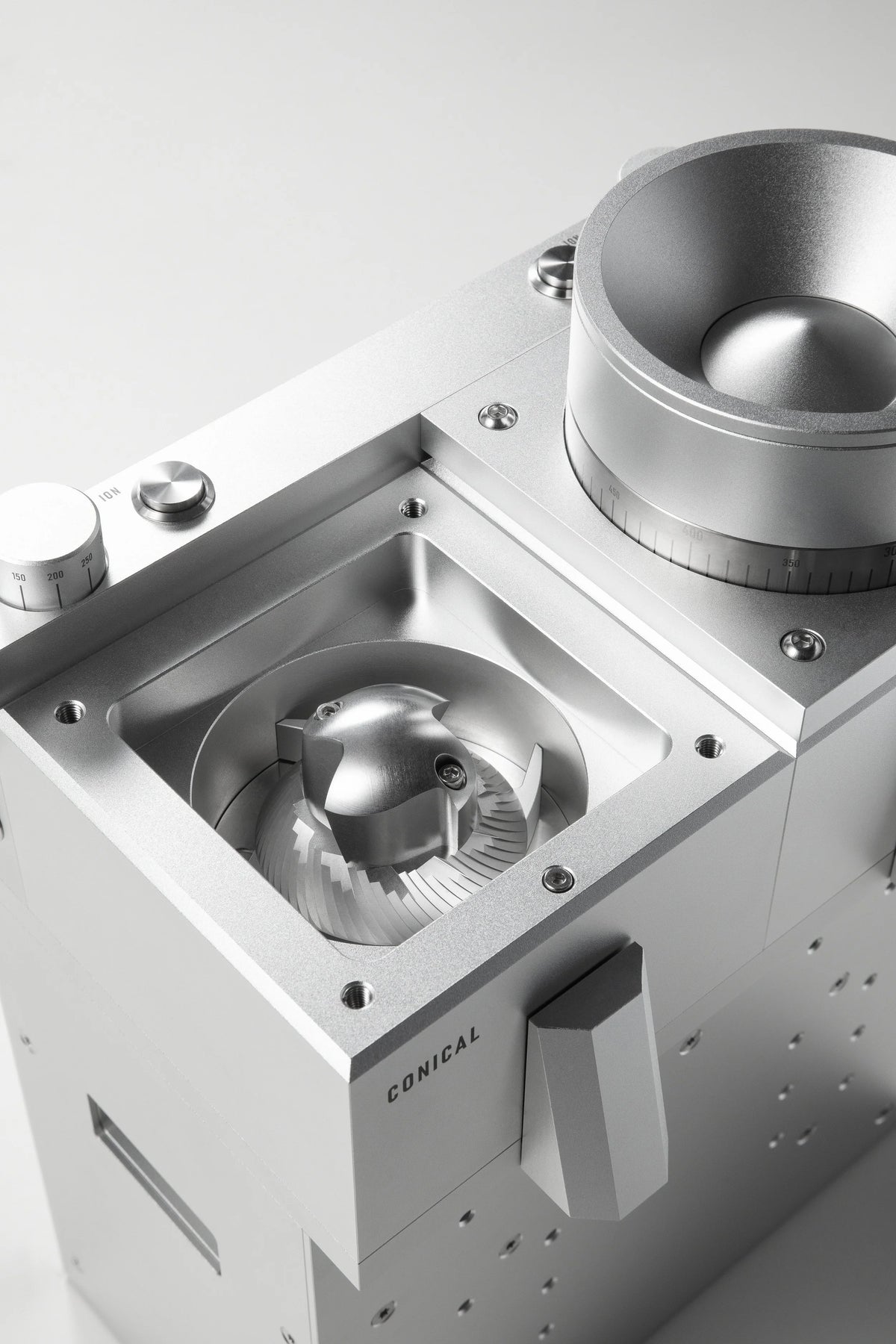

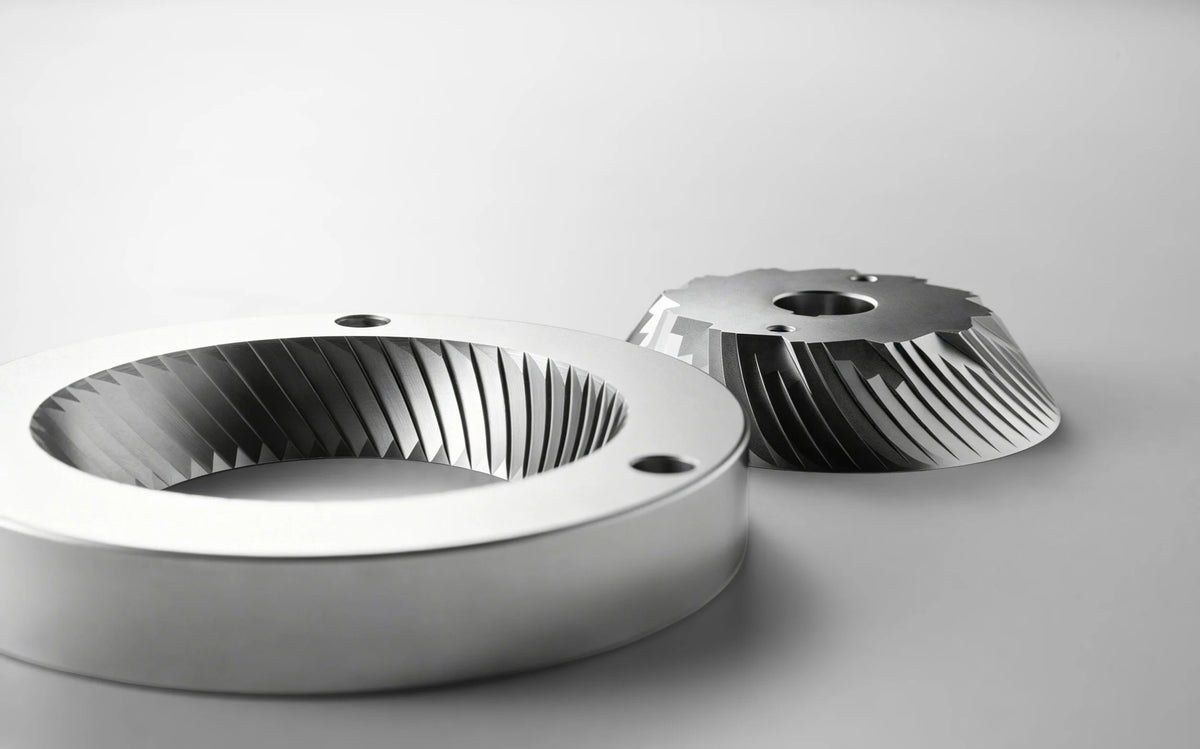

• New Mizen HC100TX conical with PCS — a Preliminary Crushing System that stabilises feed rate and reduces the bean-column effect for better intra-dose consistency.
• 1650W industrial BLDC motor with closed-loop control — stable RPM under load, even with dense Nordic light roasts.
• Belt drive tuned to geometry — conical 100–500 RPM, flat 200–2000 RPM, with less heat and vibration at the burrs.

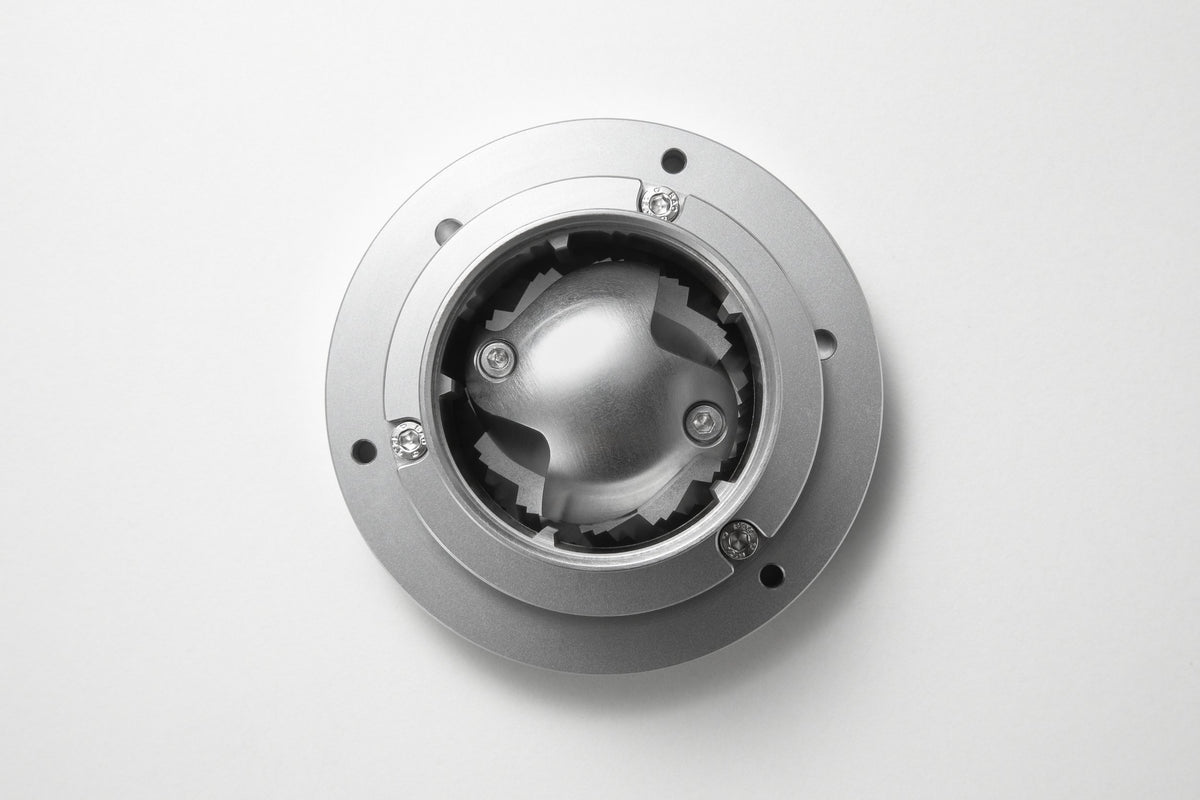

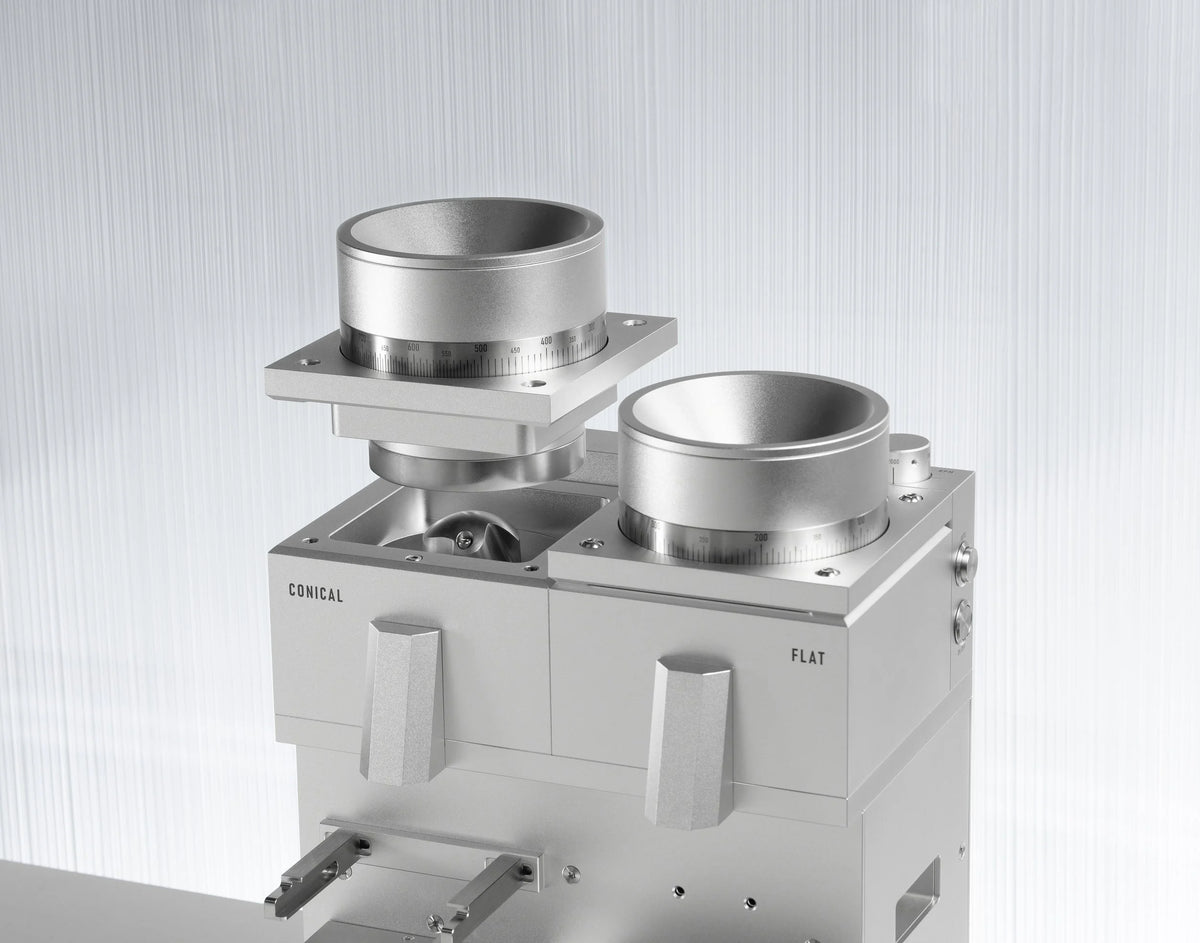

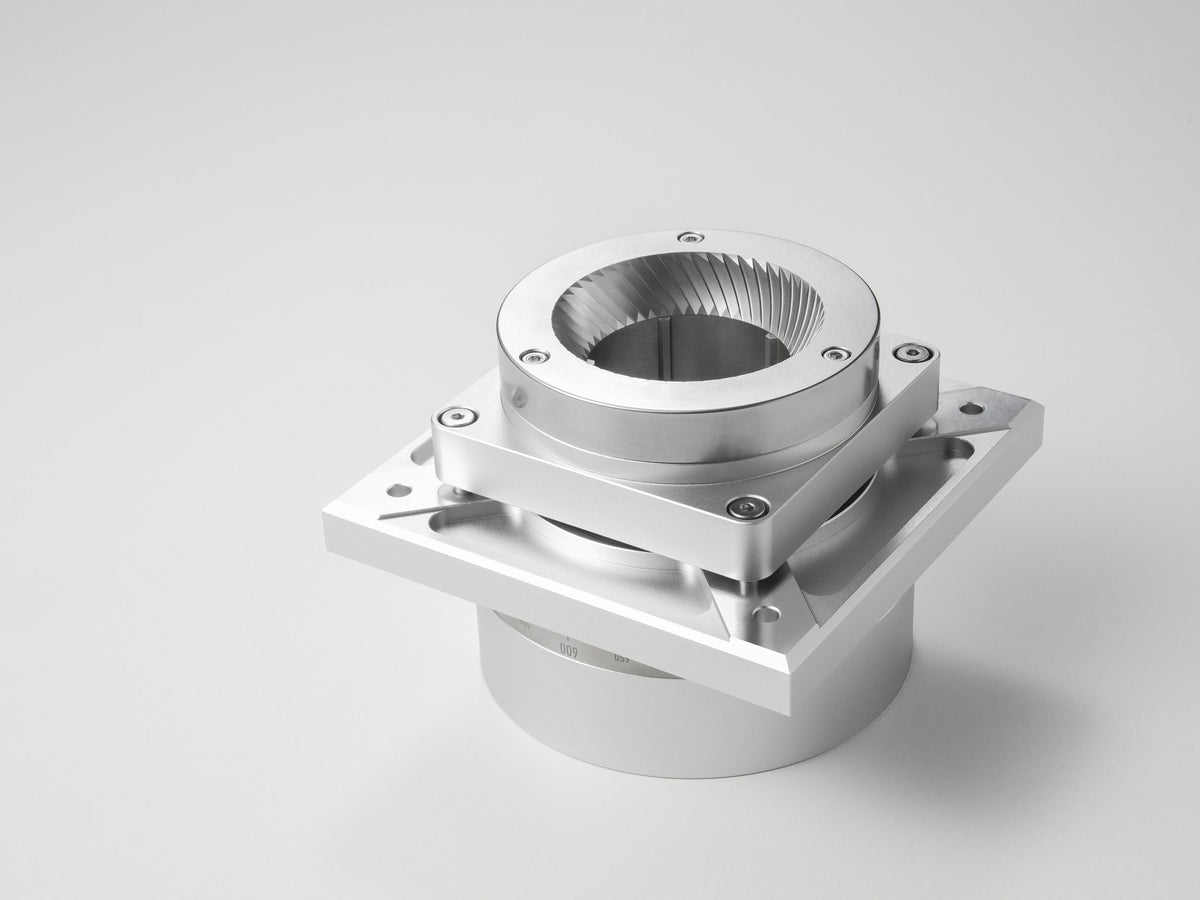

• Built true — critical parts machined to ±0.01 mm, dedicated thrust bearing for the flat burrs, integrated upper burr module that removes without recalibration. Each unit individually inspected.

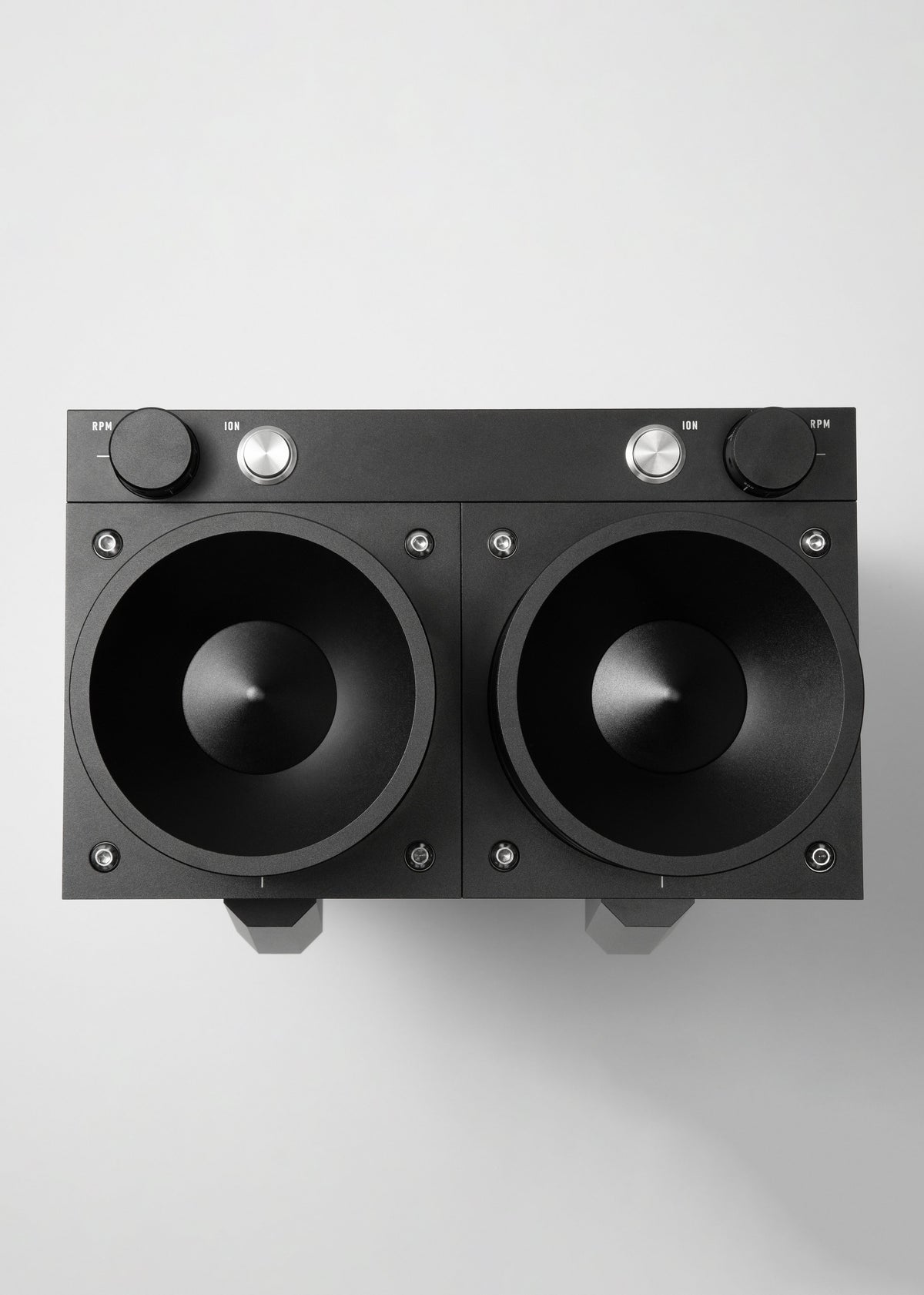

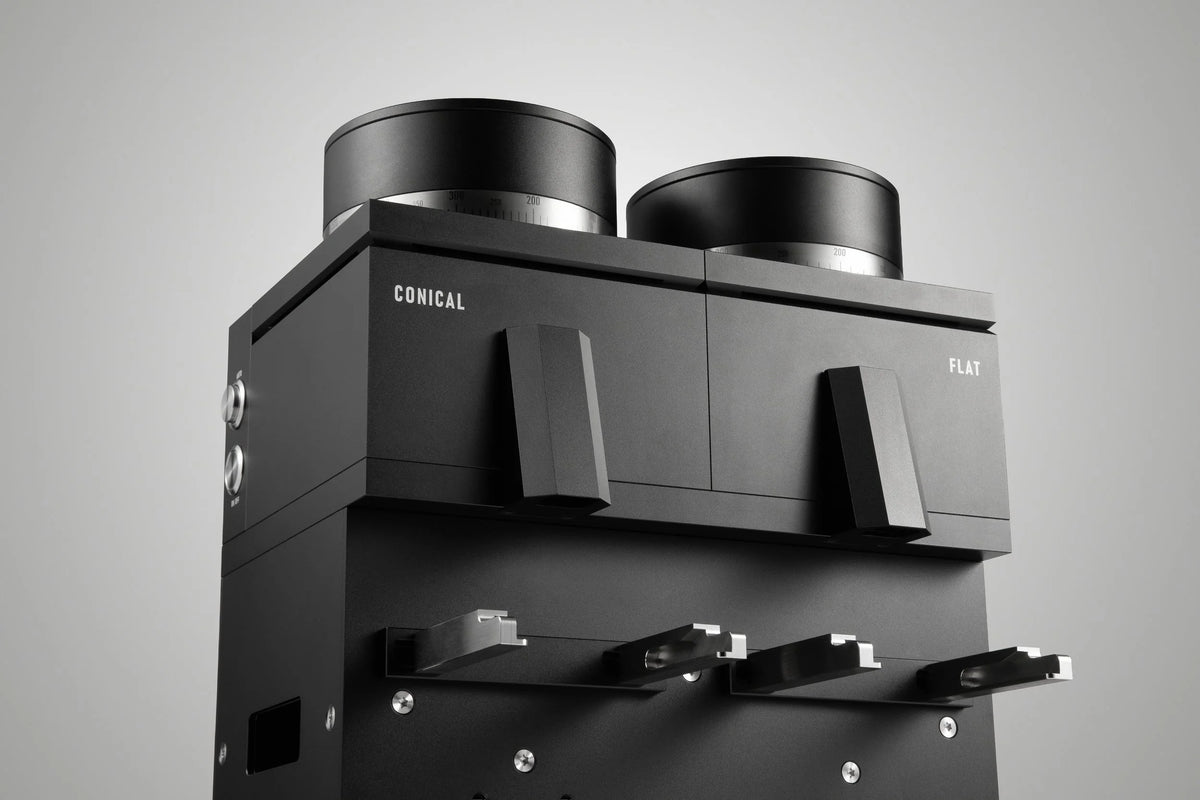

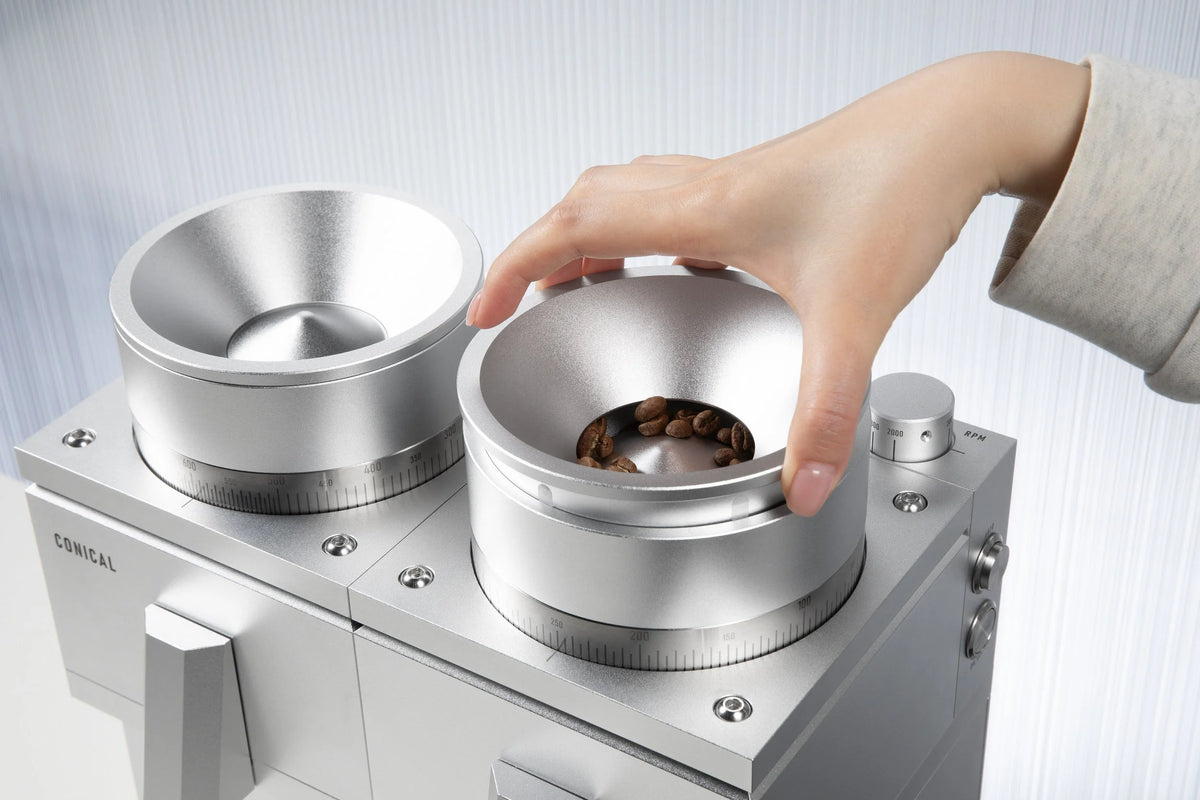

• Analog by intent — micron-scale grind dials, variable speed, purge on demand and an ionizer switch for static control.

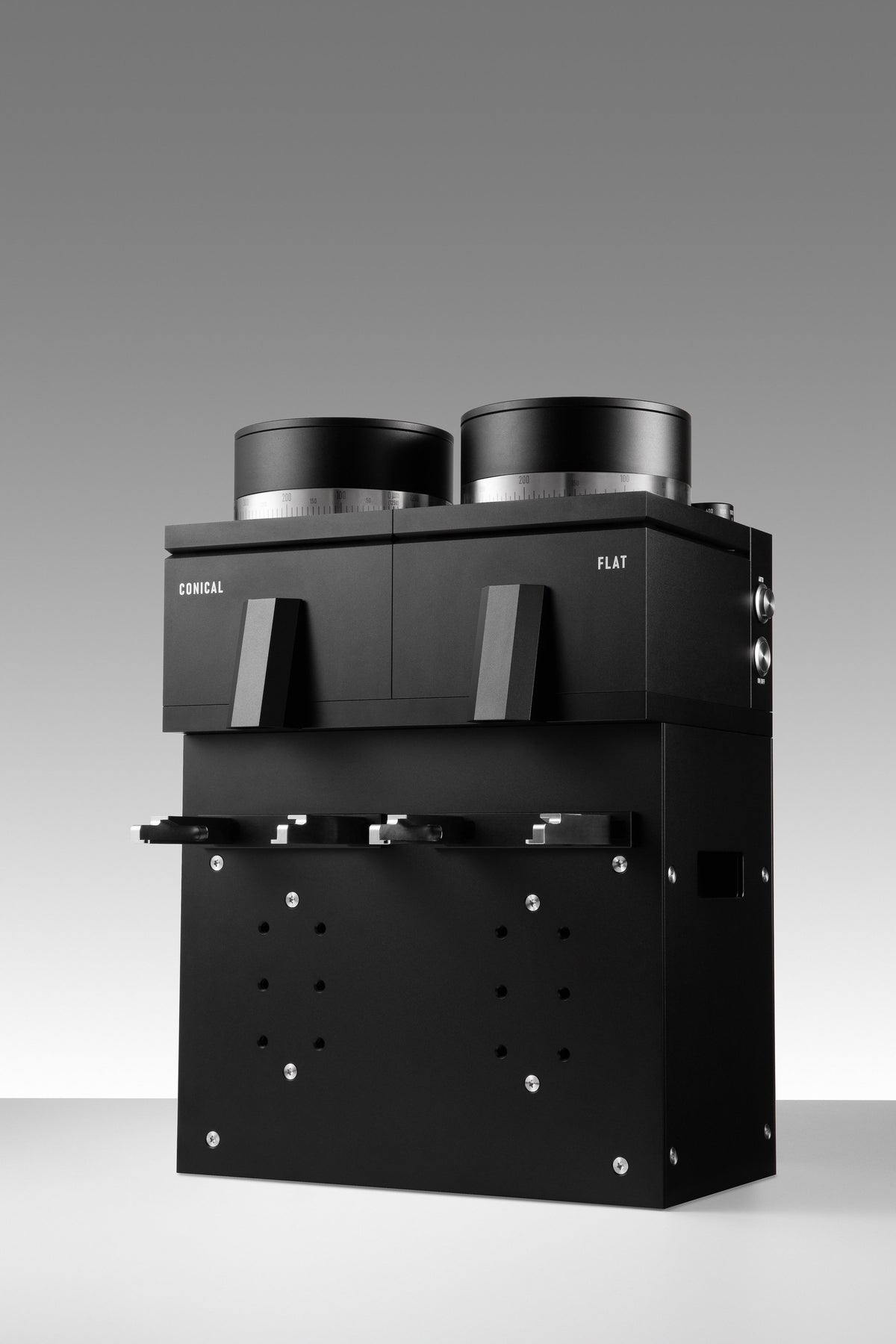

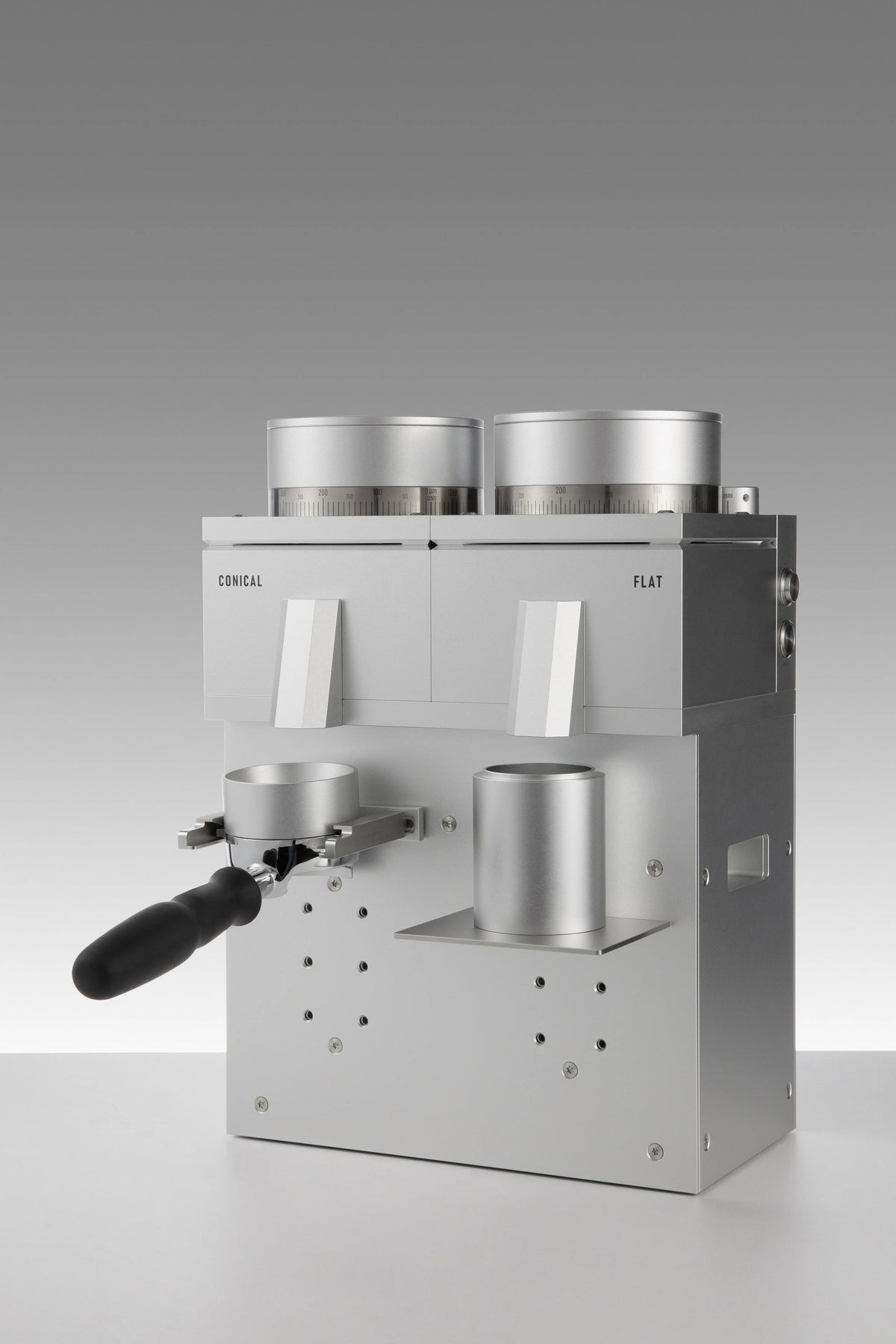

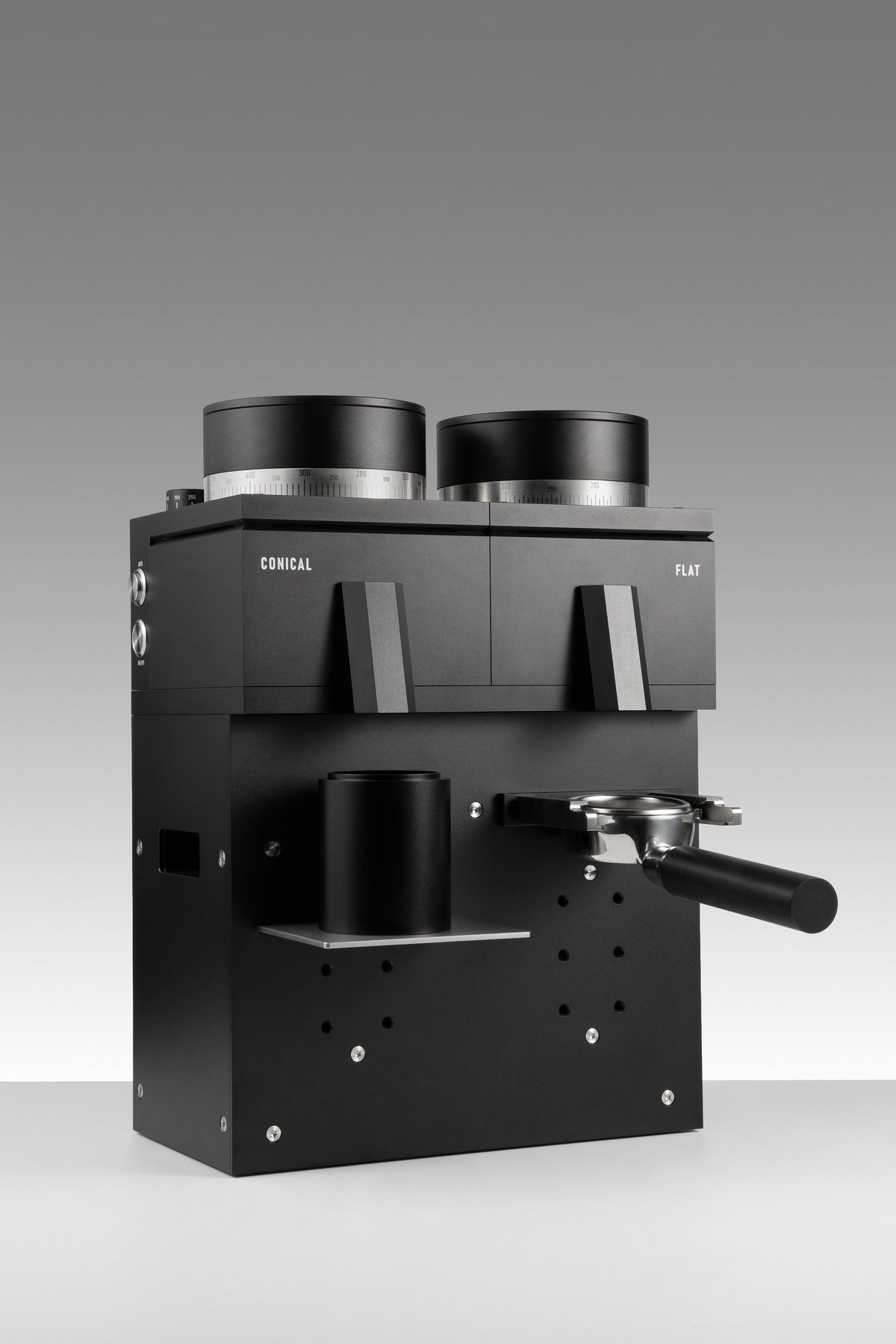

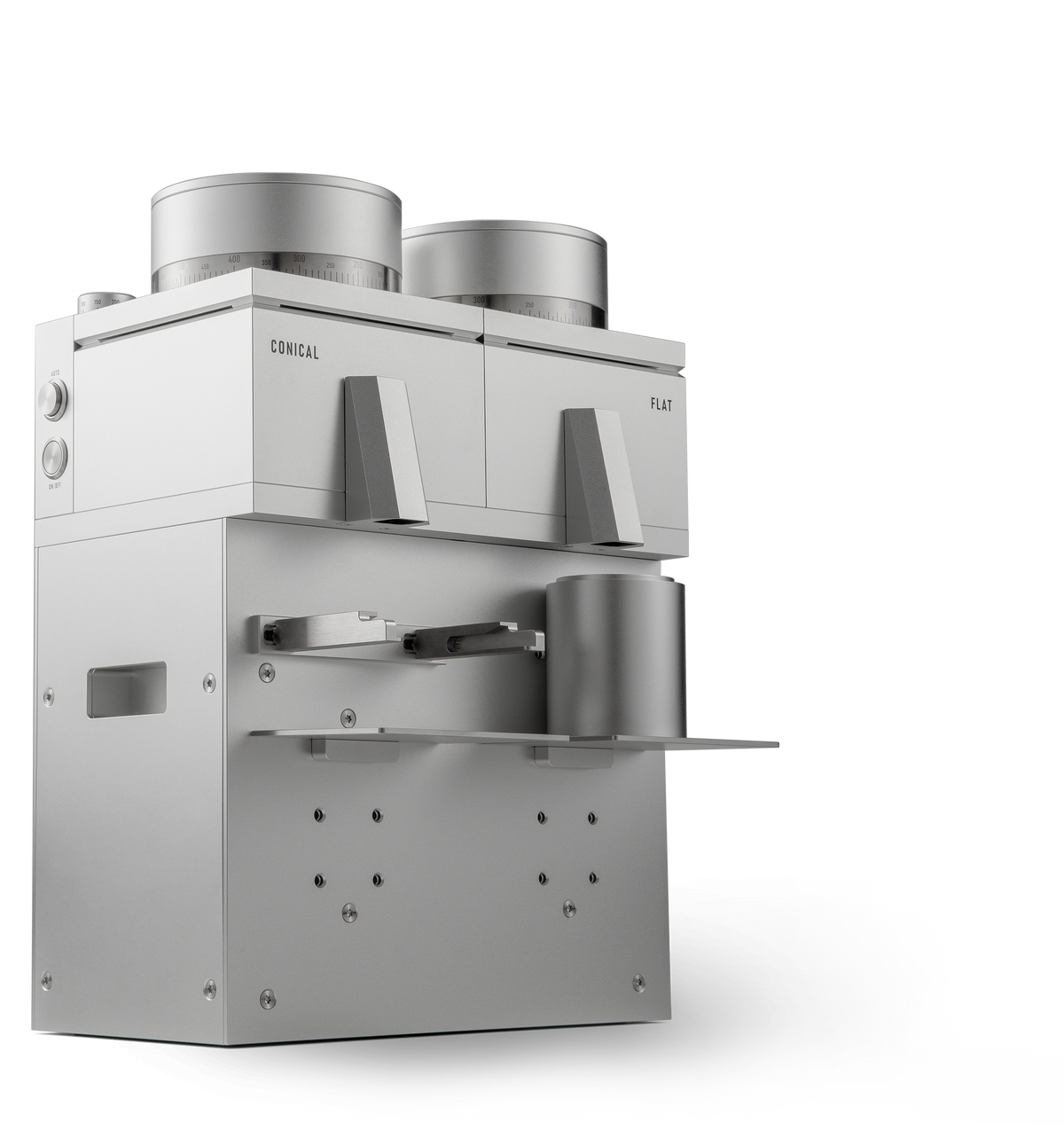

• Magnetic workflow platform — tool-free portafilter support (49–58 mm) and cup staging at 110 / 140 / 170 mm.

LAGOM GDS launch overview — Hoon's Coffee

Technical specifications

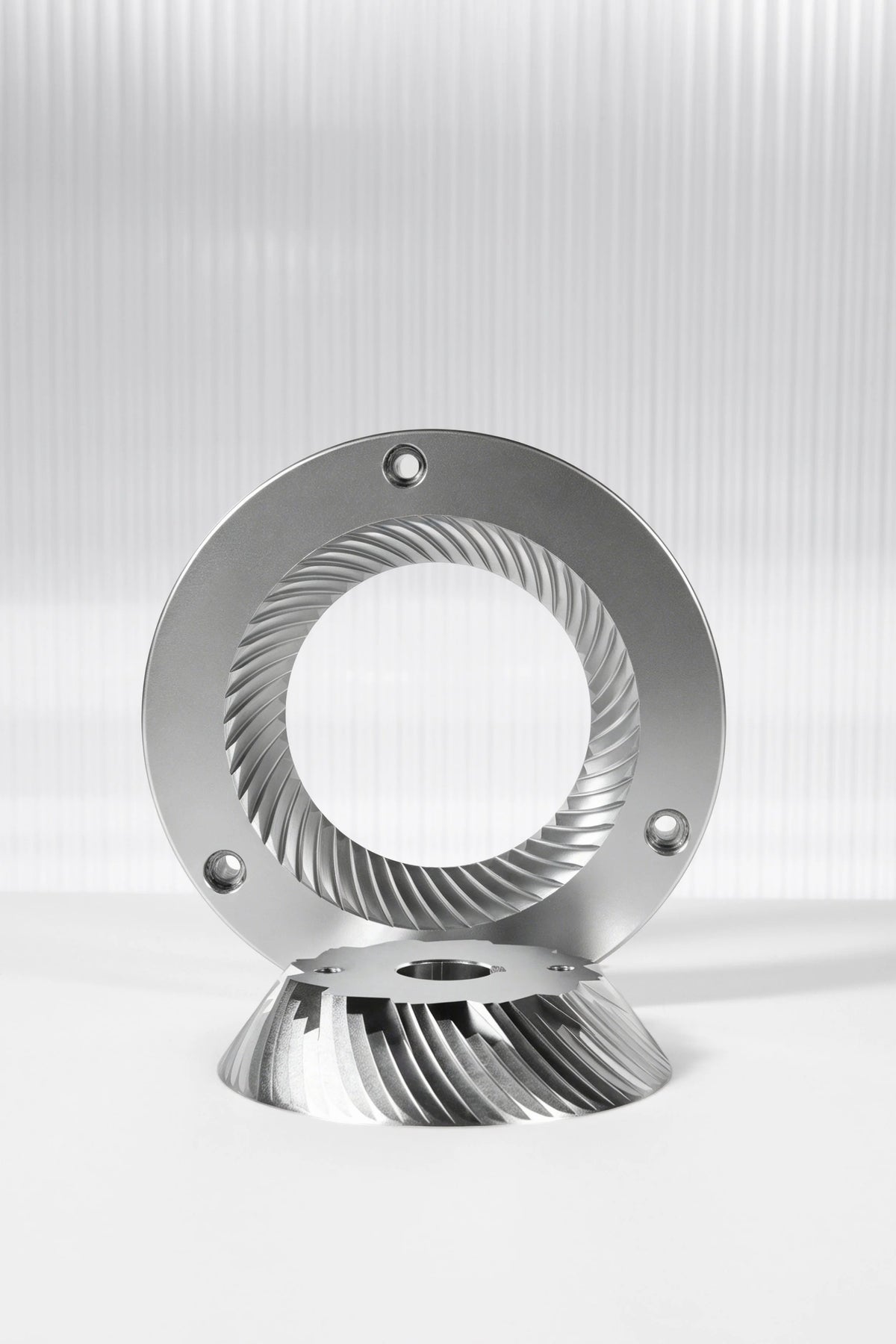

Burr size	102 mm flat or 100 mm conical
Burr configurations	Conical + Flat Mizen (100TX + 102OM), Conical + Flat SSP HU (100TX + 102HU) or Flat Mizen + Flat SSP HU (102OM + 102HU)
Grind range	Turkish to French press
Adjustment per revolution	0–1250 µm (conical), 0–750 µm (flat)
Grind retention	<0.1 g with knocker
Grinding speed	100–500 RPM (conical), 200–2000 RPM (flat)
Motor	1650 W brushless DC, single motor driving both chambers (one chamber at a time)

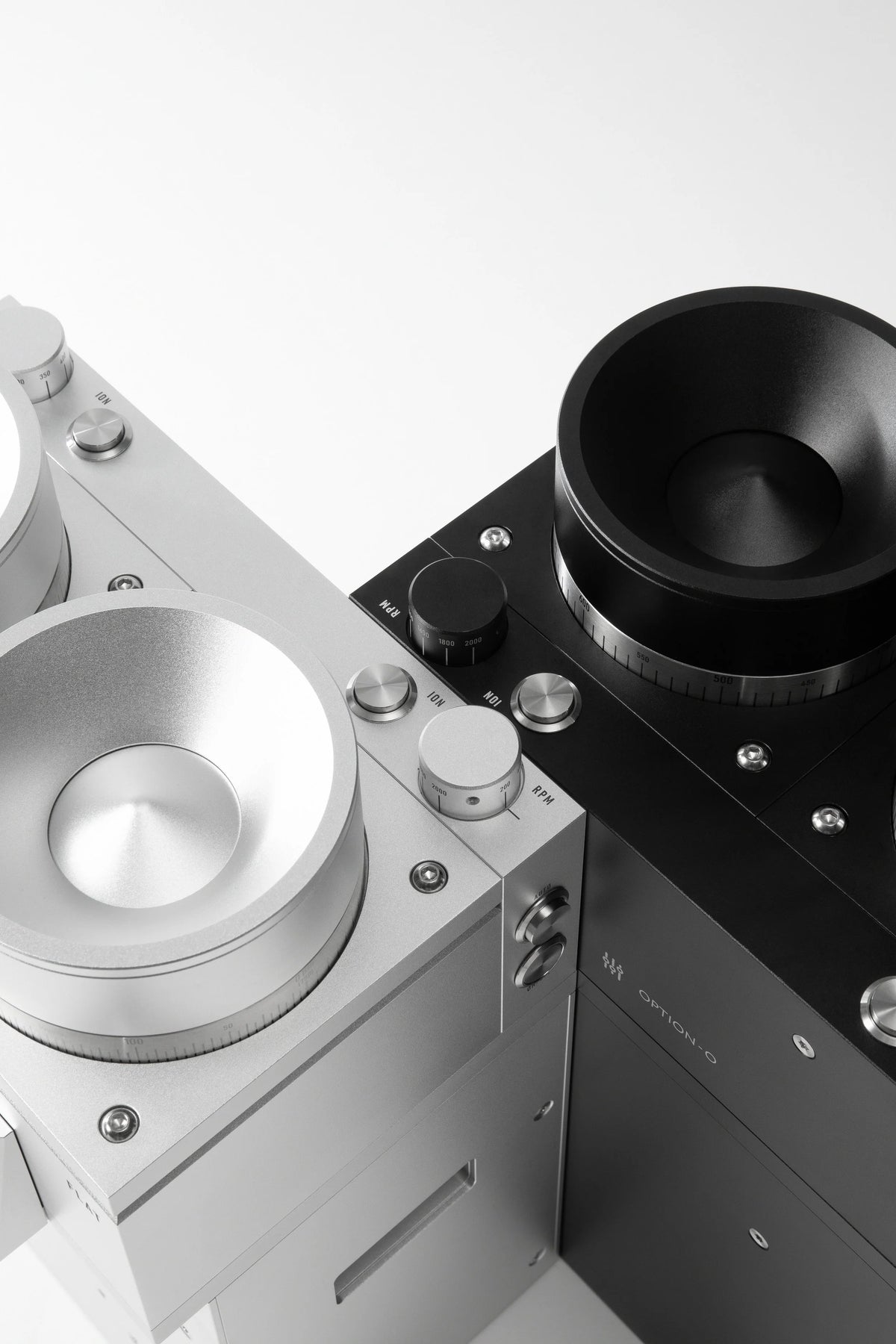

Bean capacity	Funnel holds up to 80 g; supports continuous grinding

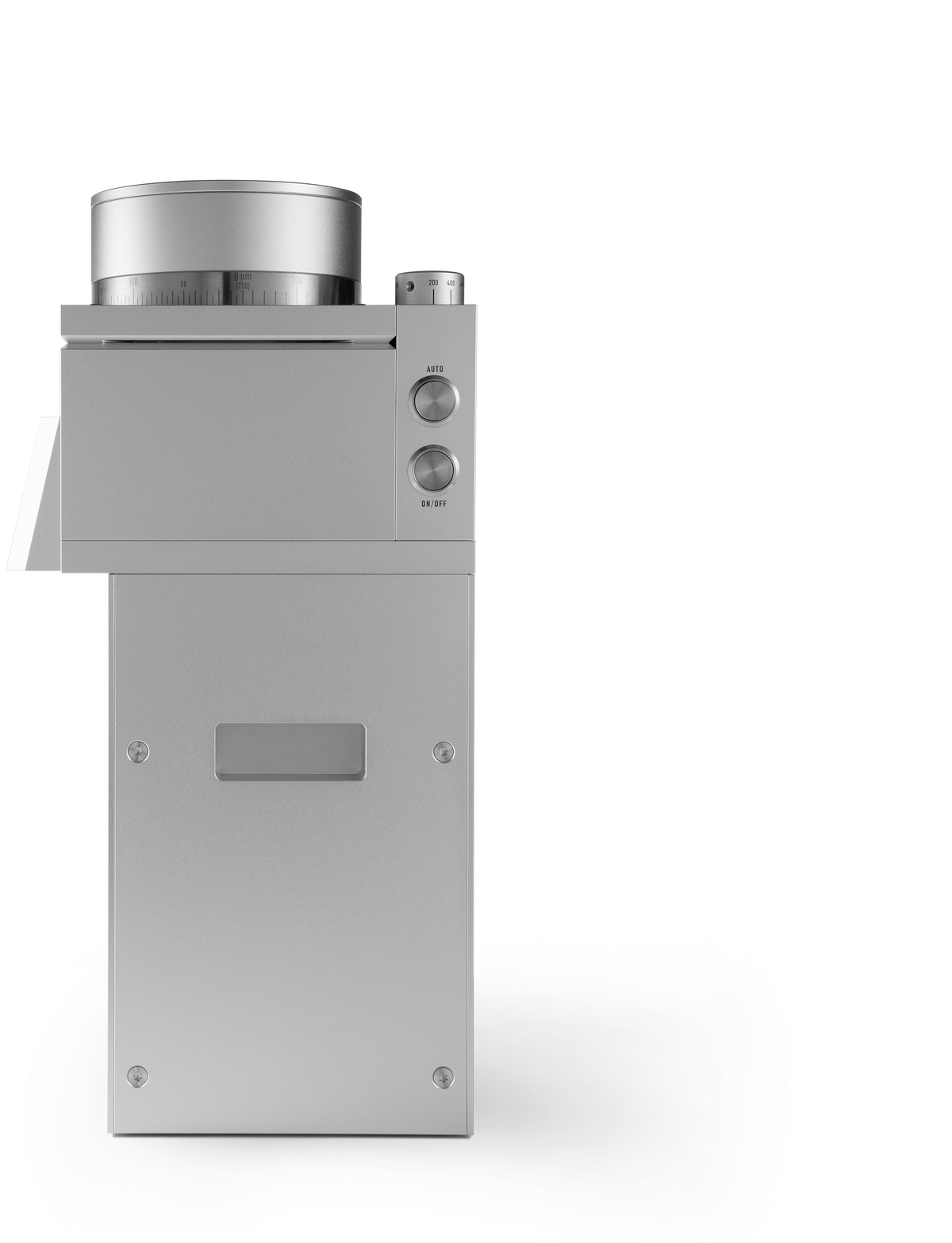

Operation modes	Manual power switch, auto-off with torque detection, purge mode
Construction	CNC-machined 6061-T6 anodised aluminium and stainless steel

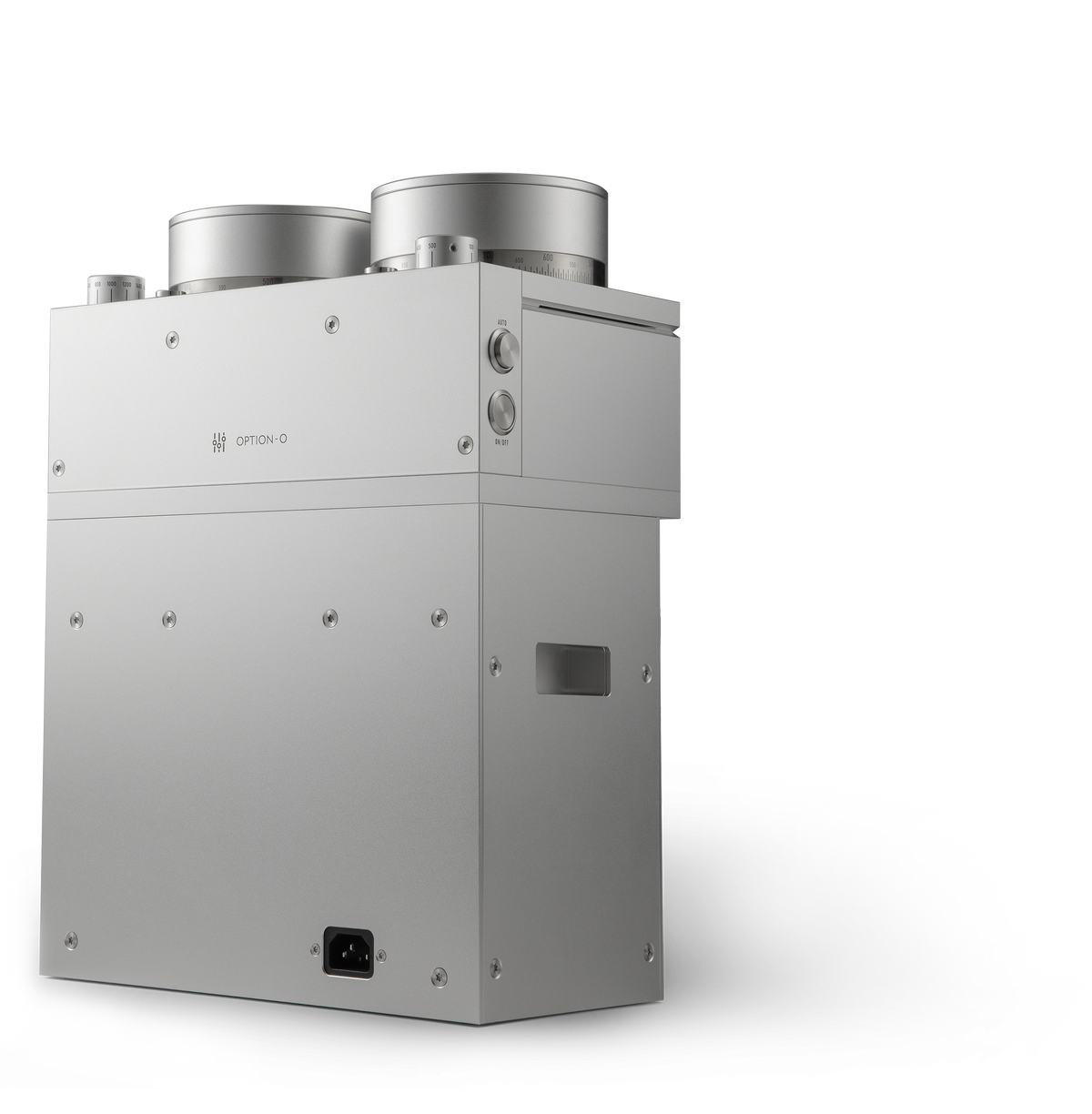

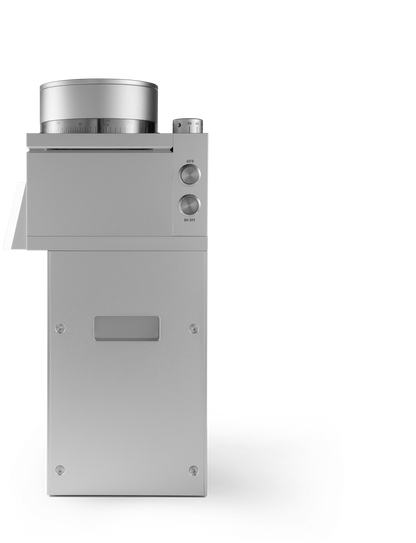

Dimensions / weight	28.5 W × 40.5 H × 18 D cm, 29 kg

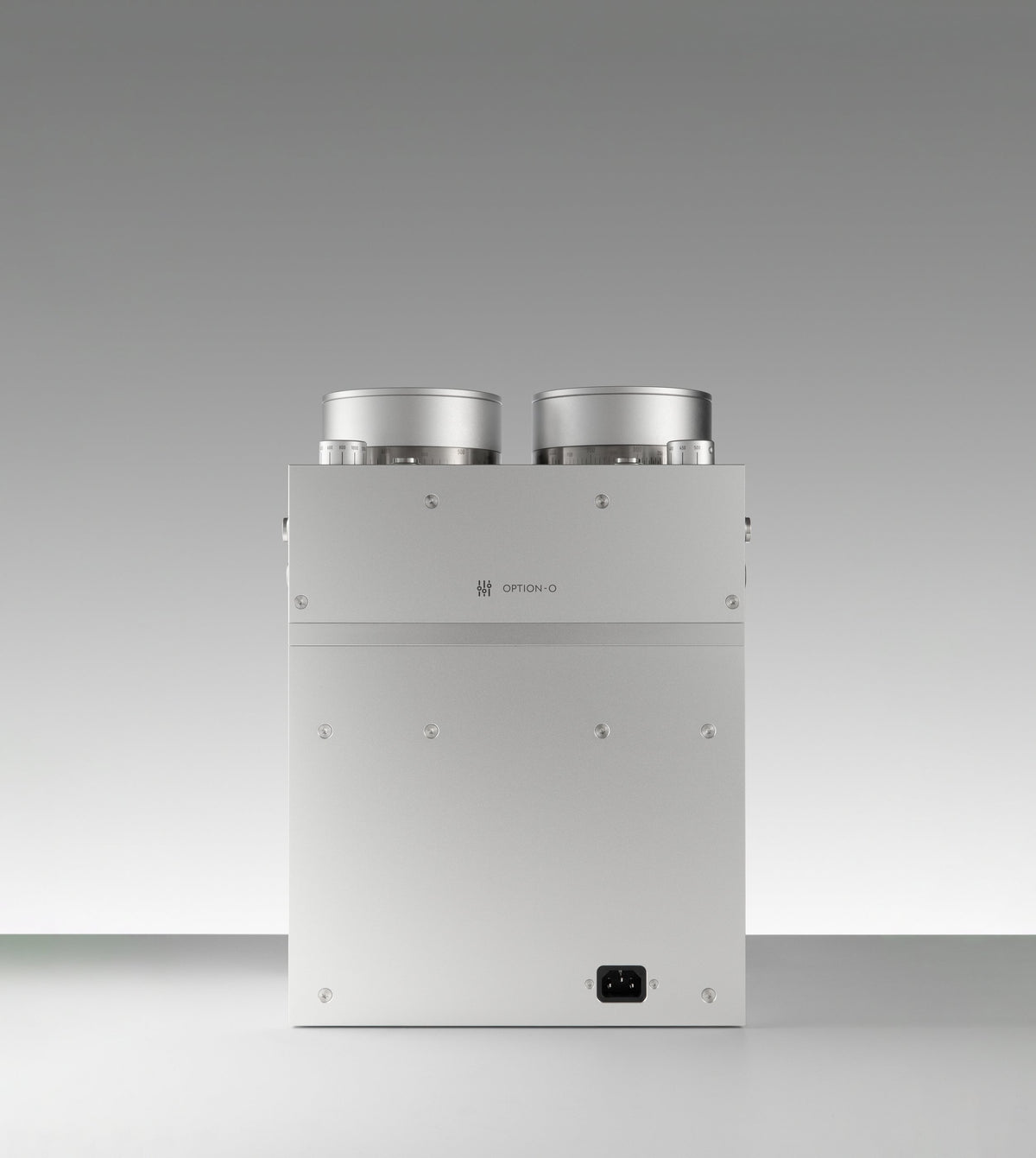

Voltage / plug	220–240 V, Type B plug (US/TH)
Warranty	1-year limited warranty, lifetime support
