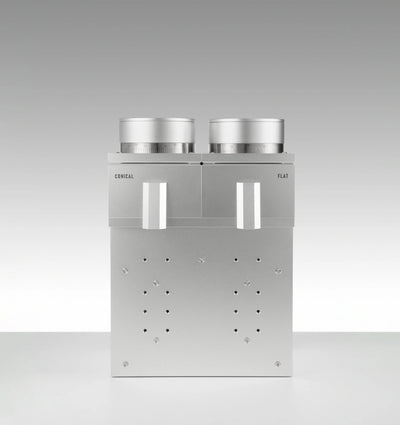

LAGOM GDS dual-geometry grinder in silver, front view

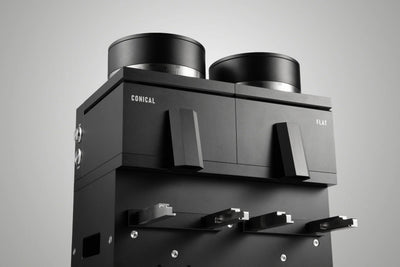

LAGOM GDS in black with twin hoppers and analog controls
LAGOM GDS lifestyle shot in a dark industrial setting
Loading beans into the LAGOM GDS twin hoppers
LAGOM GDS silver with portafilter and dosing cup

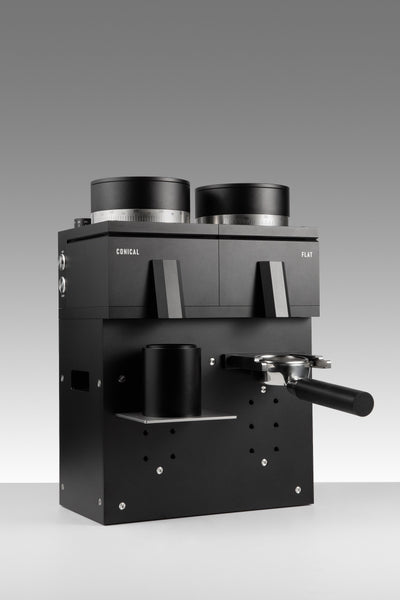

LAGOM GDS black with portafilter and dosing cup
Barista using the LAGOM GDS on the bar
LAGOM GDS in silver and black side by side

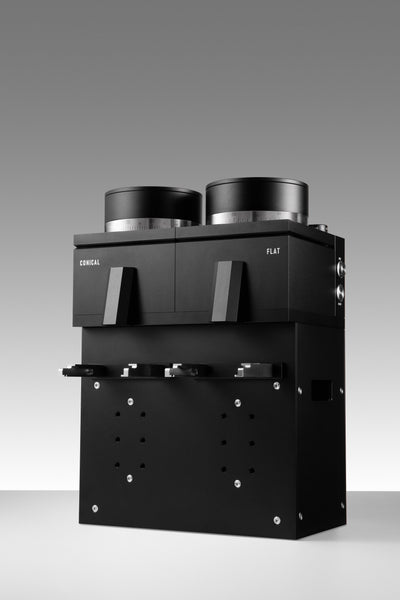

LAGOM GDS black with dual portafilter holders
LAGOM GDS black top view of twin hoppers

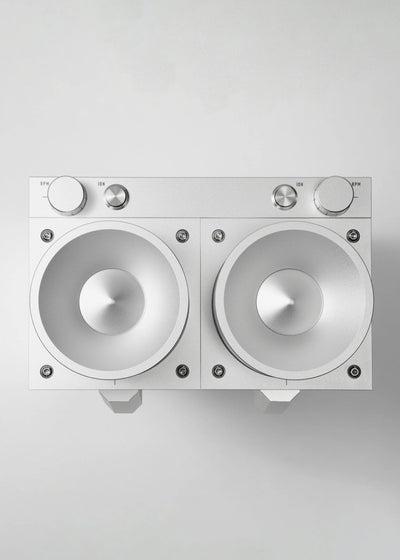

LAGOM GDS silver top view of twin hoppers
LAGOM GDS twin burr chambers close-up

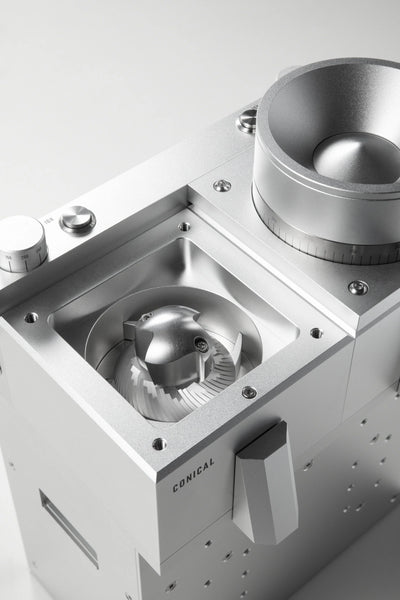

LAGOM GDS open grinding chamber detail

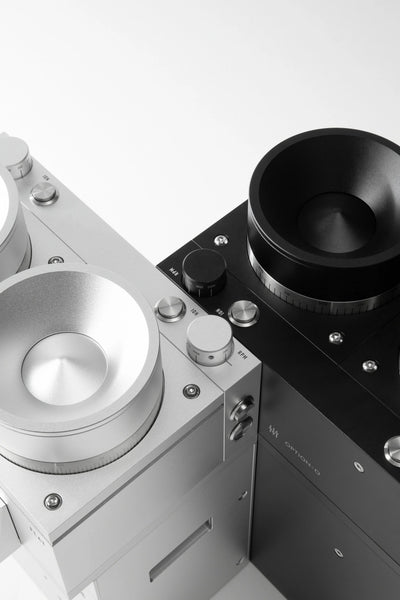

LAGOM GDS black hopper detail

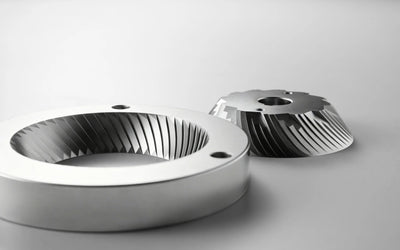

Mizen HC100TX conical burr set

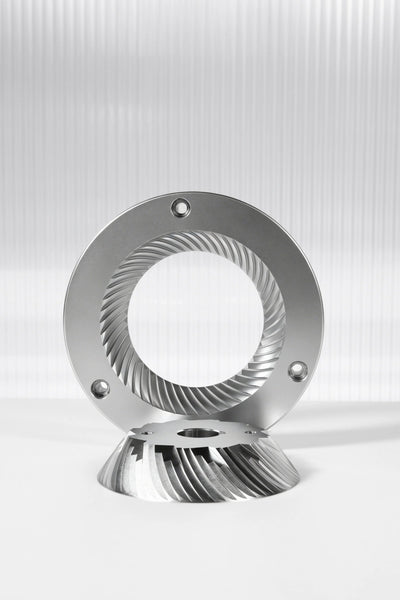

102 mm flat burr detail
LAGOM GDS integrated upper burr module

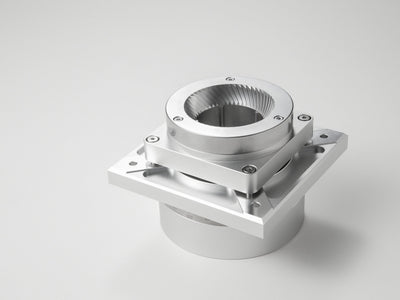

LAGOM GDS burr carrier detail

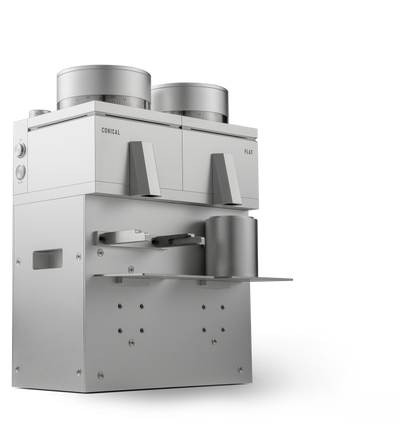

LAGOM GDS silver three-quarter view with portafilter holder

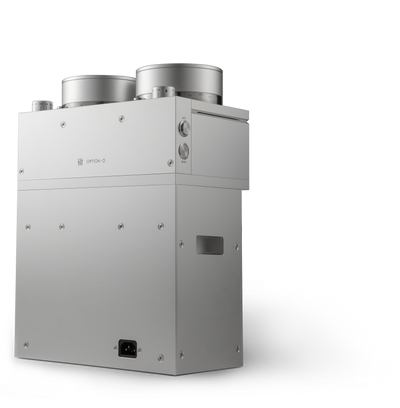

LAGOM GDS silver side view

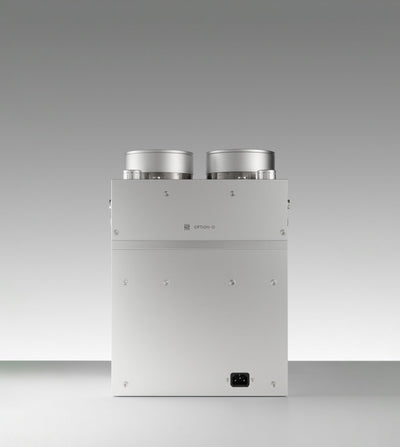

LAGOM GDS silver rear view

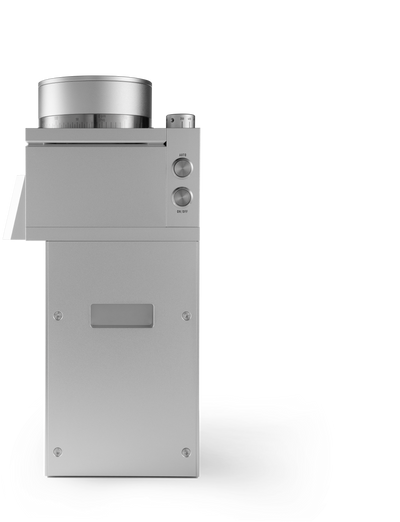

LAGOM GDS silver profile view

OPTION-O

LAGOM GDS Dual-Geometry Coffee Grinder (Pre-Order)

35,000.00 ฿
Color
Color: Silver
Burr Set
Burr Set: Conical + Flat Mizen (100TX + 102OM)

Pairs well with
Features

Pre-Order Now · Before Price Increase

Pre-order by 28 October 2026 to lock in today's price

สั่งจองภายใน 28 ต.ค. 2026 ก่อนปรับราคา

Full price ฿178,000
Deposit today to reserve your grinder ฿35,000
Balance due before delivery ฿143,000

The price shown at checkout is the ฿35,000 reservation deposit. ราคาที่ชำระตอนสั่งซื้อคือมัดจำ ฿35,000 เพื่อจองเครื่อง (ราคาเต็ม ฿178,000) ส่วนที่เหลือ ฿143,000 ชำระก่อนจัดส่ง

หมายเหตุ: ขอสงวนสิทธิ์ในการเปลี่ยนรุ่น สี หรือชุดเฟืองบด หลังยืนยันคำสั่งจอง เนื่องจากสินค้าได้สั่งและจัดส่งจากผู้ผลิตแล้ว ไม่สามารถแก้ไขได้

Please note: Changes to model, colour or burr set cannot be made once your pre-order is confirmed, as the order has already been placed and shipped from the manufacturer.

LAGOM GDS — Dual-Geometry Grinding System

Flat. Conical. Unified. Same coffee, different expressions.

GDS — Grinding Dynamics Study — is OPTION-O's dual-geometry grinder: flat and conical burrs in a single chassis, so you can explore clarity or mouthfeel, filter or espresso, side by side without changing machines. Designed like a lab instrument and inspired by high-end audio amplifiers, its controls and fasteners are exposed, intentional and analog.

รีวิว LAGOM GDS ภาษาไทย โดย Ben Coffee Story

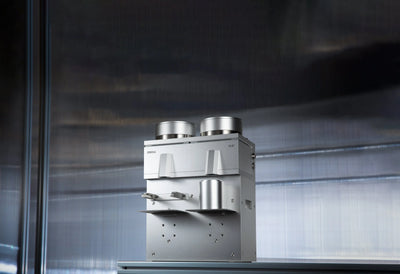

LAGOM GDS lifestyle

Three burr configurations

  • Conical + Flat Mizen (100TX + 102OM) — the all-rounder. Rich, syrupy, traditional profiles on the left; OPTION-O's in-house Mizen flat pushes modern light roasts to their extraction potential on the right.
  • Conical + Flat SSP HU (100TX + 102HU) — the same conical paired with an SSP High Uniformity flat for maximum clarity and separation.
  • Flat Mizen + Flat SSP HU (102OM + 102HU) — two flat-burr expressions, Mizen and SSP High Uniformity, in one machine for direct comparison.

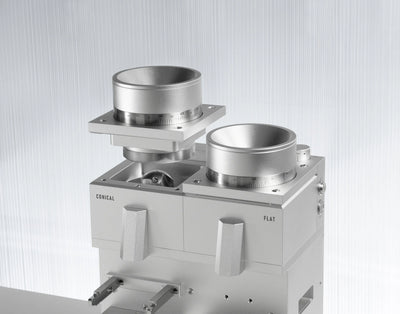

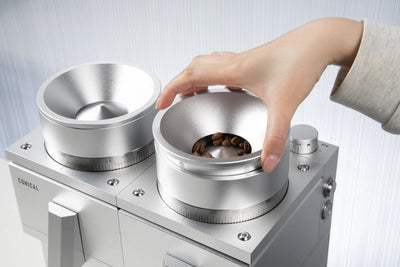

Loading beans into the twin hoppersBarista using the LAGOM GDS

Highlights

  • New Mizen HC100TX conical with PCS — a Preliminary Crushing System that stabilises feed rate and reduces the bean-column effect for better intra-dose consistency.
  • 1650W industrial BLDC motor with closed-loop control — stable RPM under load, even with dense Nordic light roasts.
  • Belt drive tuned to geometry — conical 100–500 RPM, flat 200–2000 RPM, with less heat and vibration at the burrs.

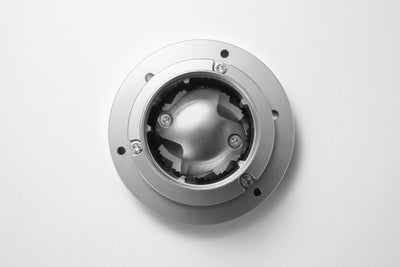

  • Built true — critical parts machined to ±0.01 mm, dedicated thrust bearing for the flat burrs, integrated upper burr module that removes without recalibration. Each unit individually inspected.
  • Analog by intent — micron-scale grind dials, variable speed, purge on demand and an ionizer switch for static control.
  • Magnetic workflow platform — tool-free portafilter support (49–58 mm) and cup staging at 110 / 140 / 170 mm.

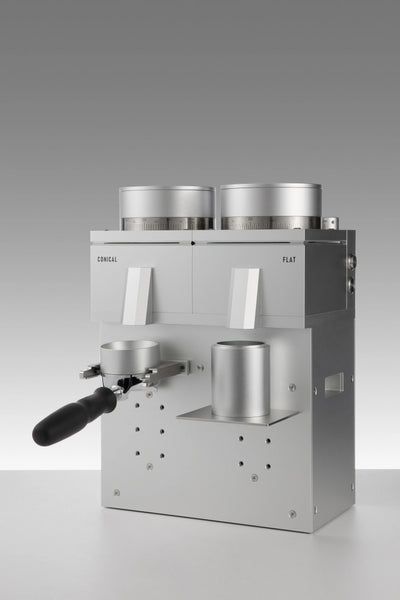

LAGOM GDS silver with portafilterLAGOM GDS black with portafilter

LAGOM GDS launch overview — Hoon's Coffee

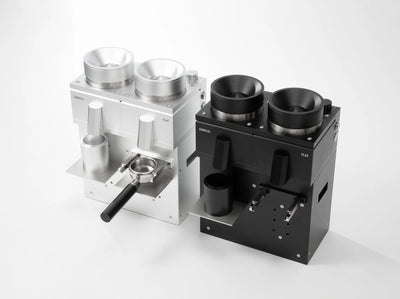

LAGOM GDS in silver and black

Technical specifications

Burr size 102 mm flat or 100 mm conical
Burr configurations Conical + Flat Mizen (100TX + 102OM), Conical + Flat SSP HU (100TX + 102HU) or Flat Mizen + Flat SSP HU (102OM + 102HU)
Grind range Turkish to French press
Adjustment per revolution 0–1250 µm (conical), 0–750 µm (flat)
Grind retention <0.1 g with knocker
Grinding speed 100–500 RPM (conical), 200–2000 RPM (flat)
Motor 1650 W brushless DC, single motor driving both chambers (one chamber at a time)
Bean capacity Funnel holds up to 80 g; supports continuous grinding
Operation modes Manual power switch, auto-off with torque detection, purge mode
Construction CNC-machined 6061-T6 anodised aluminium and stainless steel
Dimensions / weight 28.5 W × 40.5 H × 18 D cm, 29 kg
Voltage / plug 220–240 V, Type B plug (US/TH)
Warranty 1-year limited warranty, lifetime support
